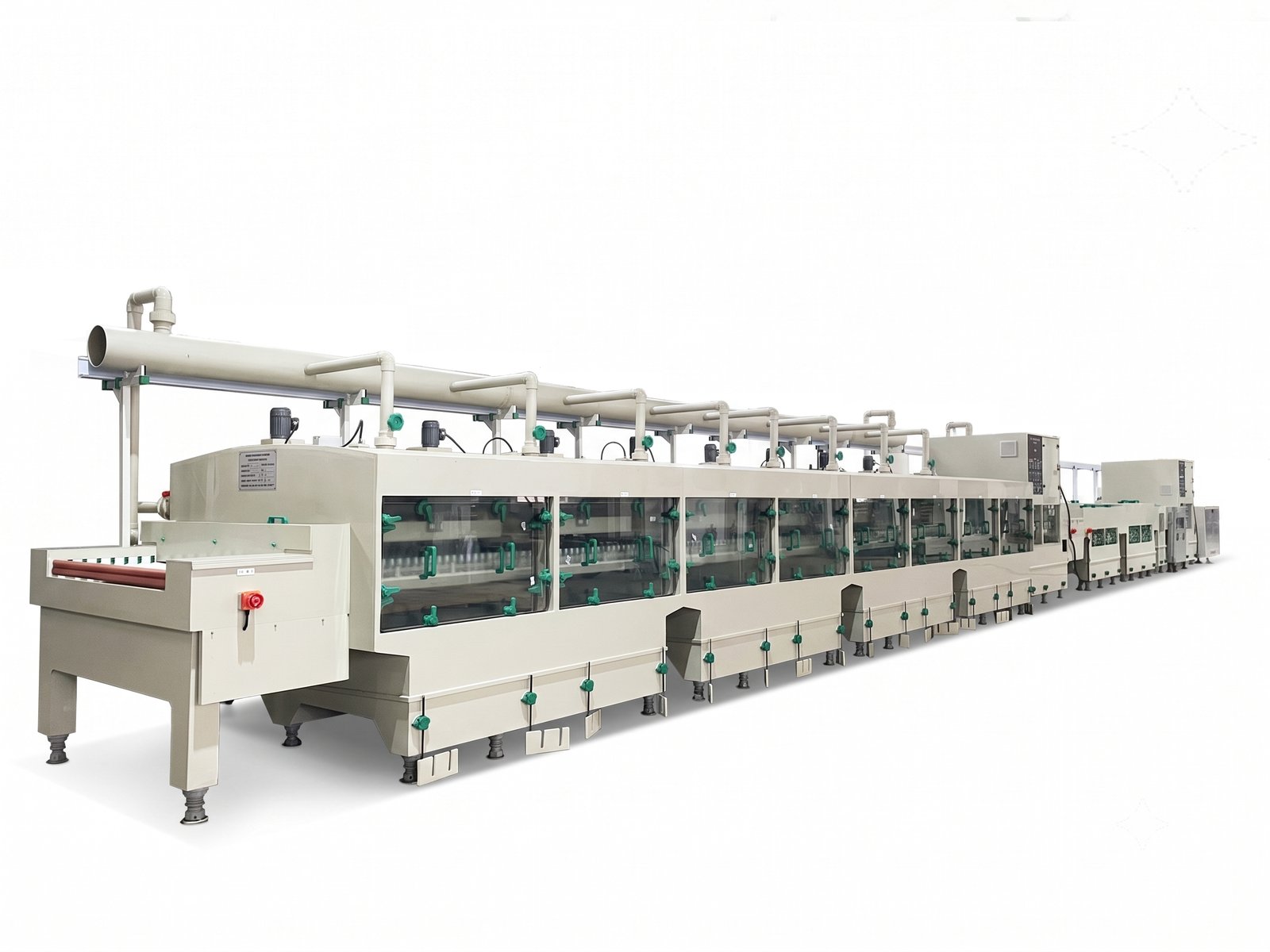

Metal Etching machine for stainless steel sheet cookware
Specifications:
- Etching machine process includes: Loading → Etching → Recycle washing (1/2) → DI water rinsing → Squeezing →Inspection → Film Soak → Film stripping → Recycle washing (3/4) → Brushing(2 Brush) → Recycle washing(5/6) →DI water washing → Squeezing → Cold blower →Hot air drying → Unloading
- Dimension: L24,450xW3,210xH2,670MM
- Effective working width: 1500mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 7.5HP 8SET double side Etching
- Total power consumption: 220.4KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Etching machine is waiting for you.

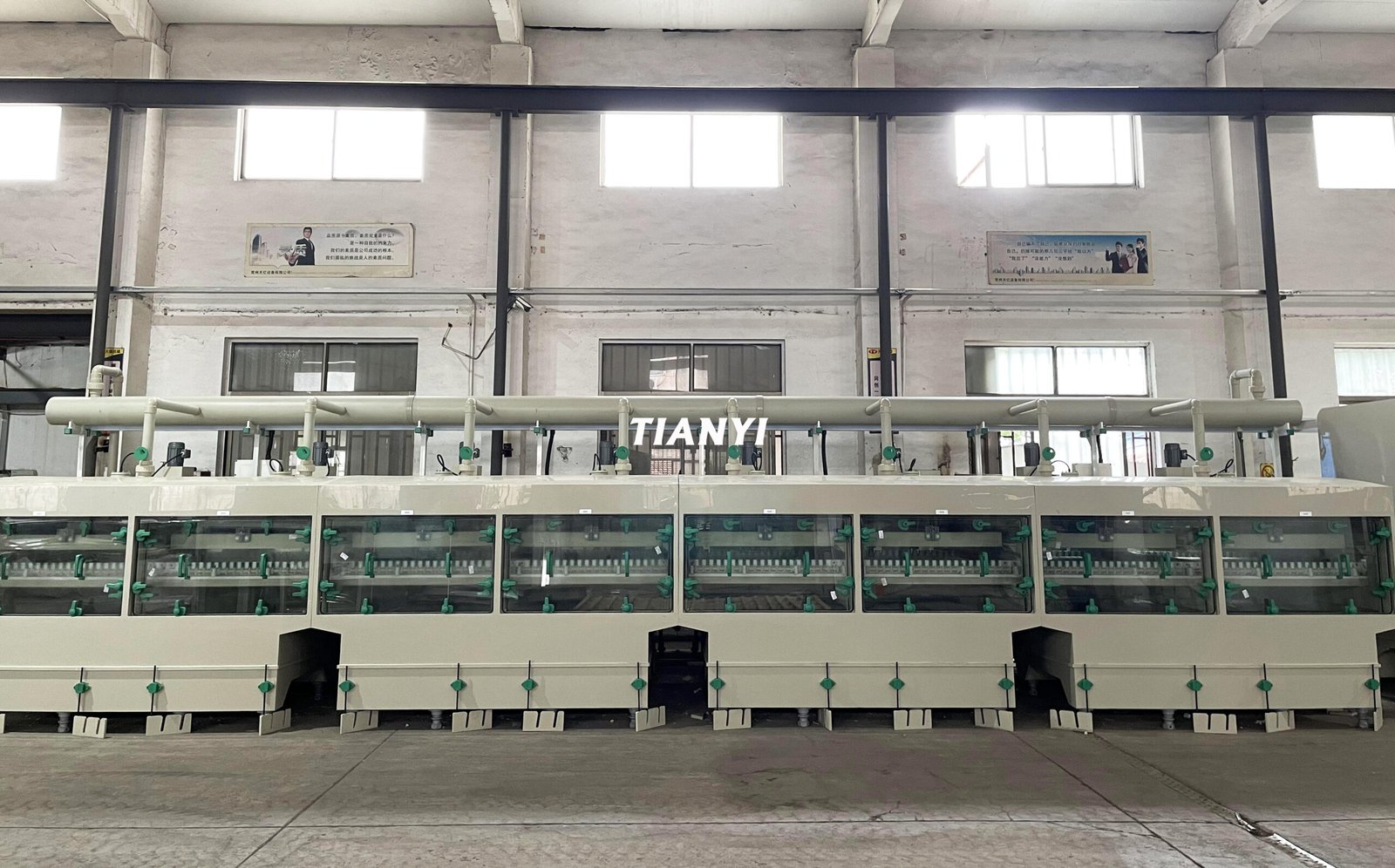

Effective etching spraying length is 8 meter, combined etching and stripping process in one machine.

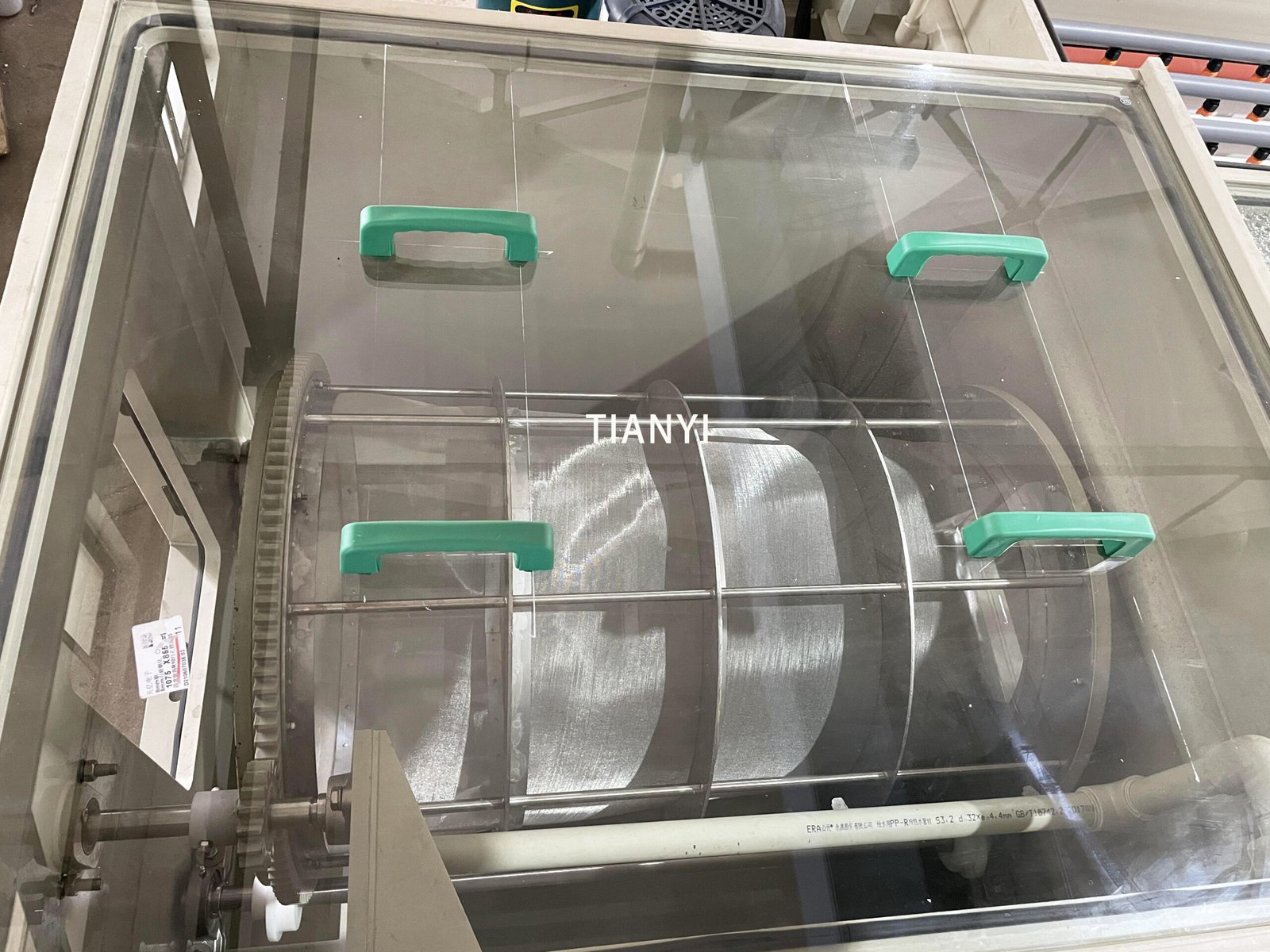

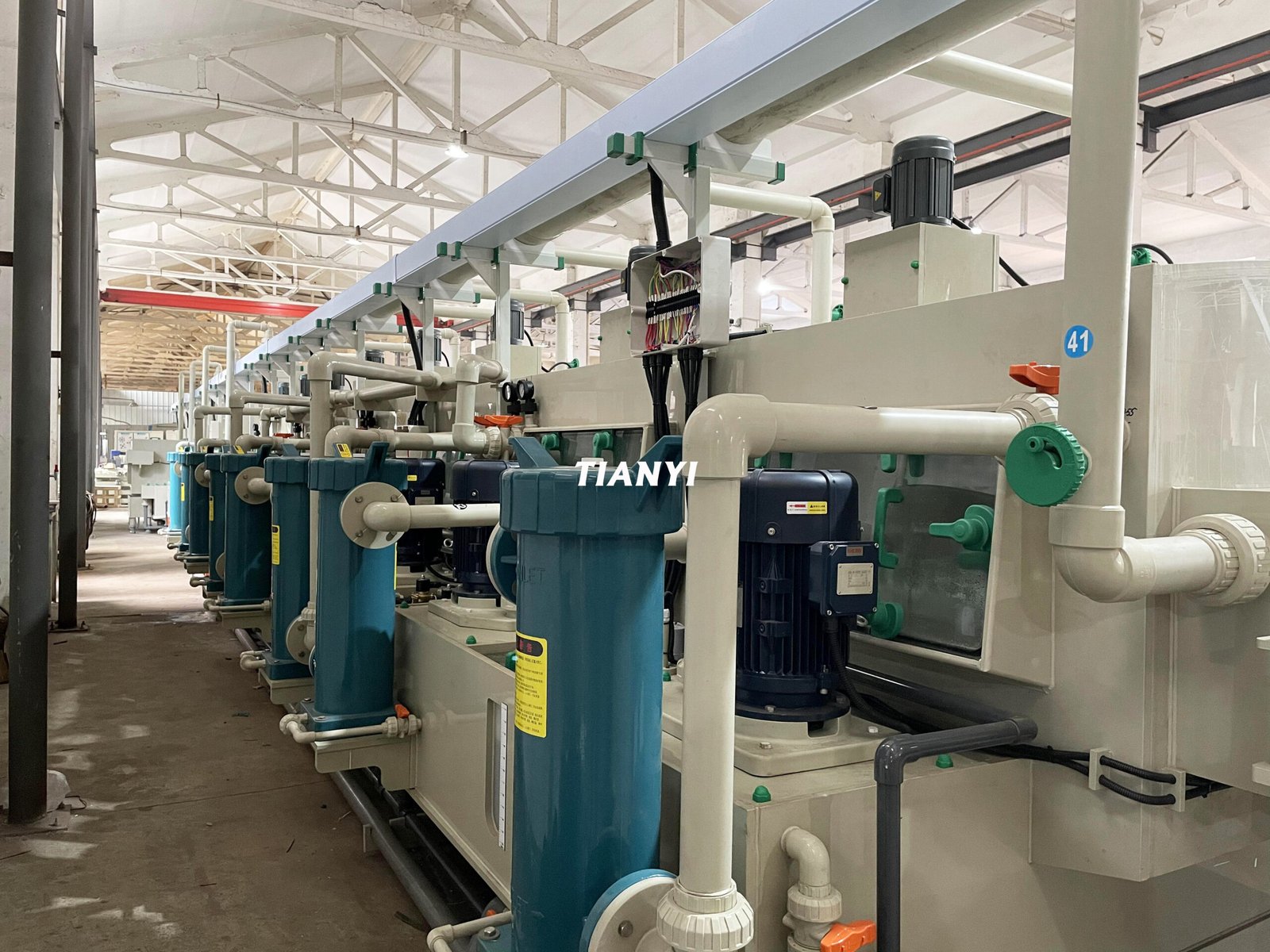

Constructed with a corrosion-resistant body and advanced PP material. Adding one brushing module after film stripping process for completely surface cleaning on stainless steel plate.
