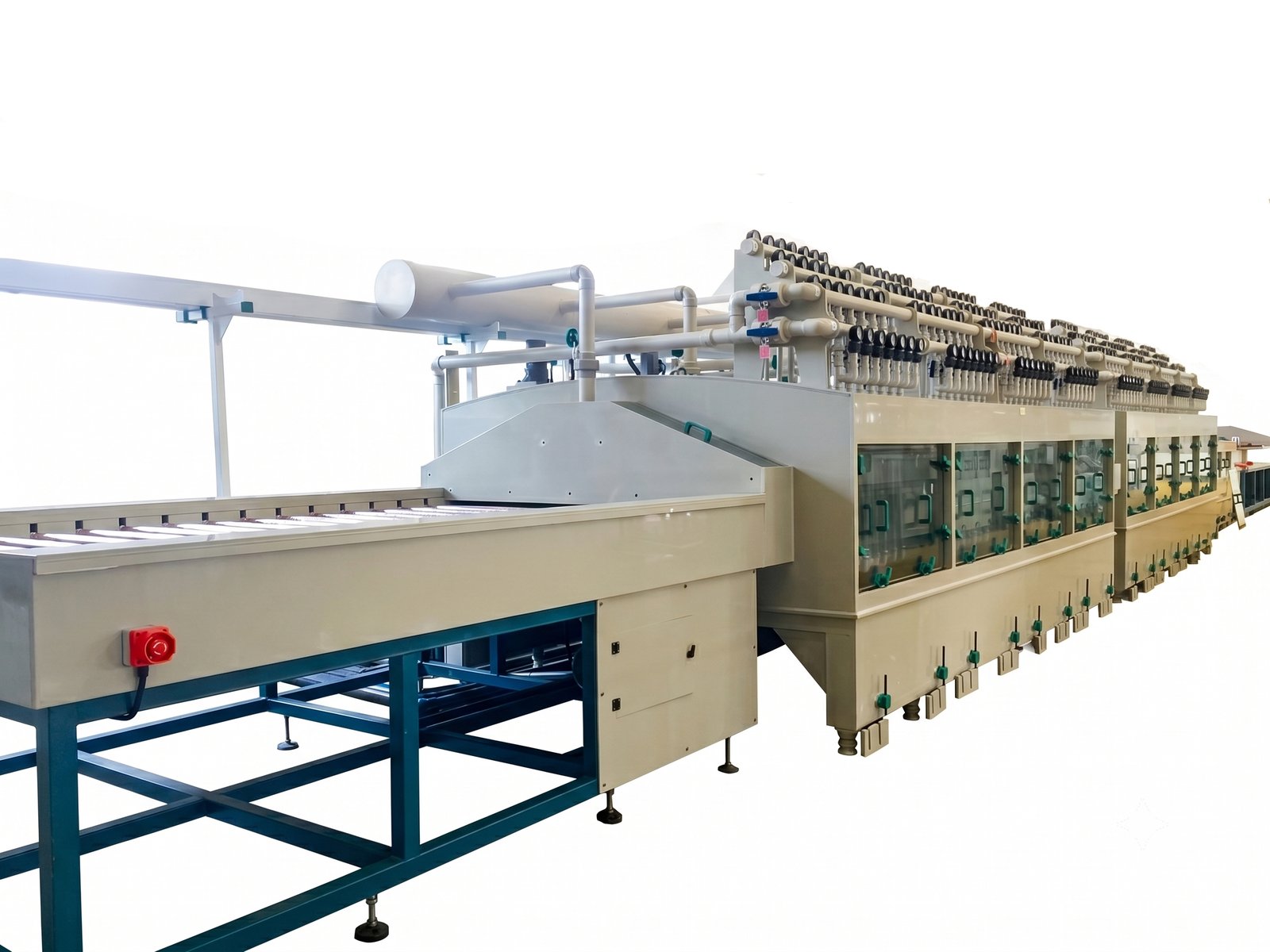

Chemical Etching machine for stainless steel press plate
Specifications:
- Etching machine process includes: Loading → Etching → Recycle washing (1/2) → DI water rinsing → Squeezing → Inspection → Film Soak → Film stripping → Recycle washing (3/4) → Brushing(2 Brush) → Recycle washing(5/6) →DI water washing → Squeezing → Cold blower →Hot air drying → Unloading
- Dimension: L24,450xW3,210xH2,670MM
- Effective working width: 1500mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 7.5HP 8SET double side Etching
- Total power consumption: 220.4KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Etching machine is waiting for you.

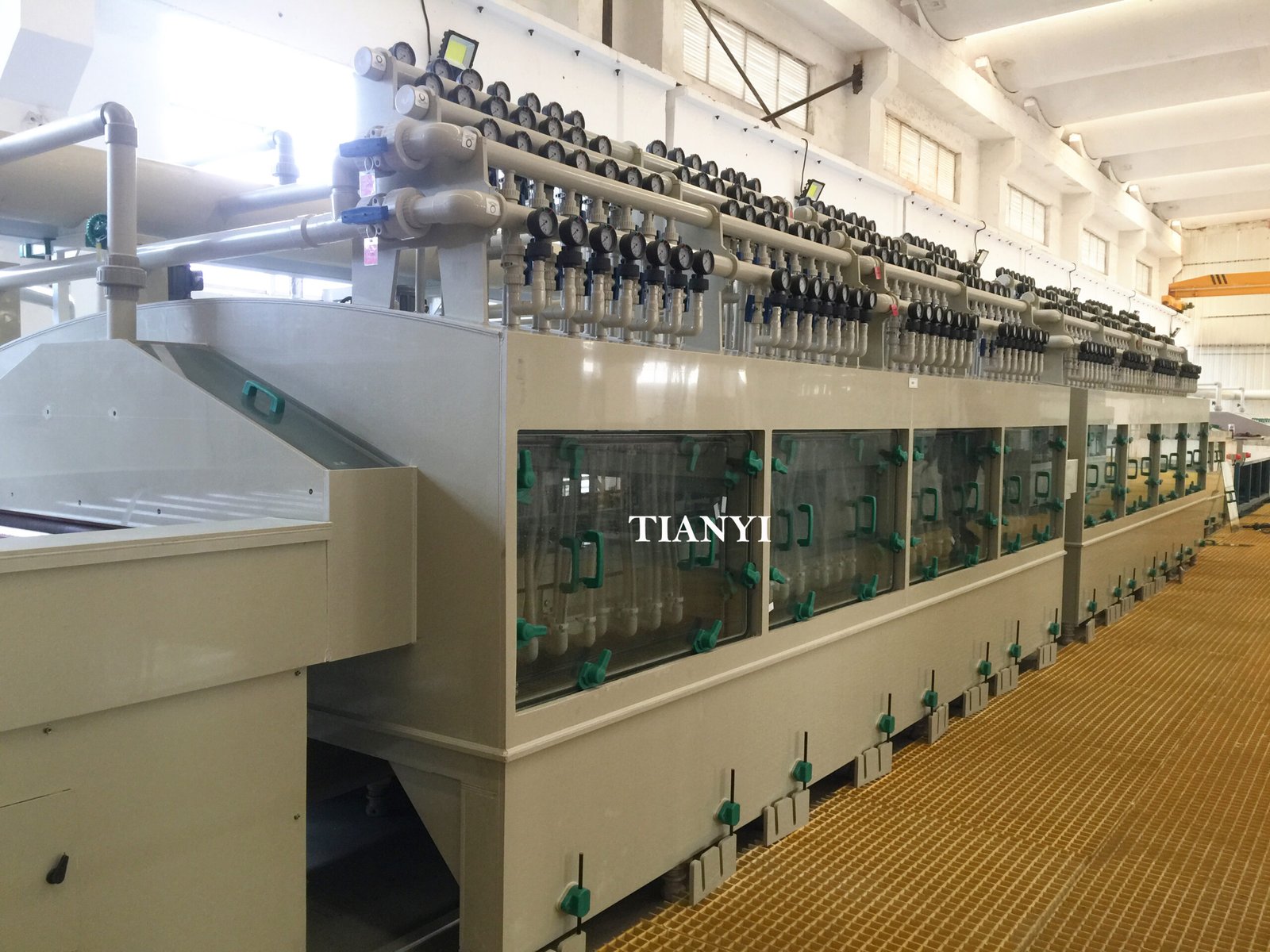

Effective etching spraying length is 8 meter, constructed with a corrosion-resistant body and advanced PP material, chemical etching machine assemble full pressure gauge for large quantity stainless steel press plate production. The etching depth could reach 30-35micros.

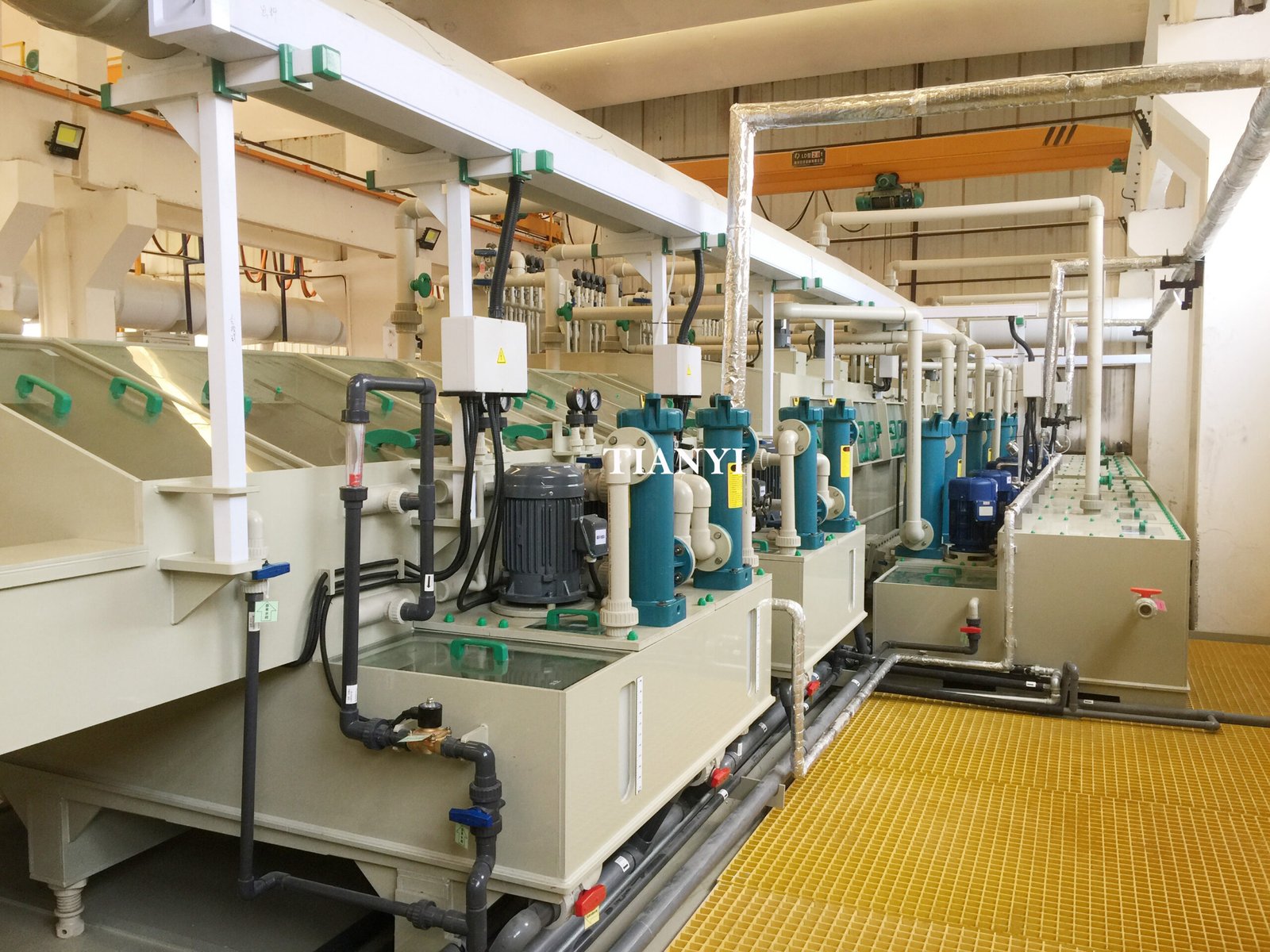

Etching machine is equipped with ferric chloride regeneration and recirculation system, it could continuously restores etching solution activity by oxidizing Fe²⁺ to Fe³⁺, maintaining stable etching speed and surface quality. It minimizes chemical consumption, reduces waste discharge, and ensures consistent, efficient, and environmentally friendly stainless steel etching performance.
