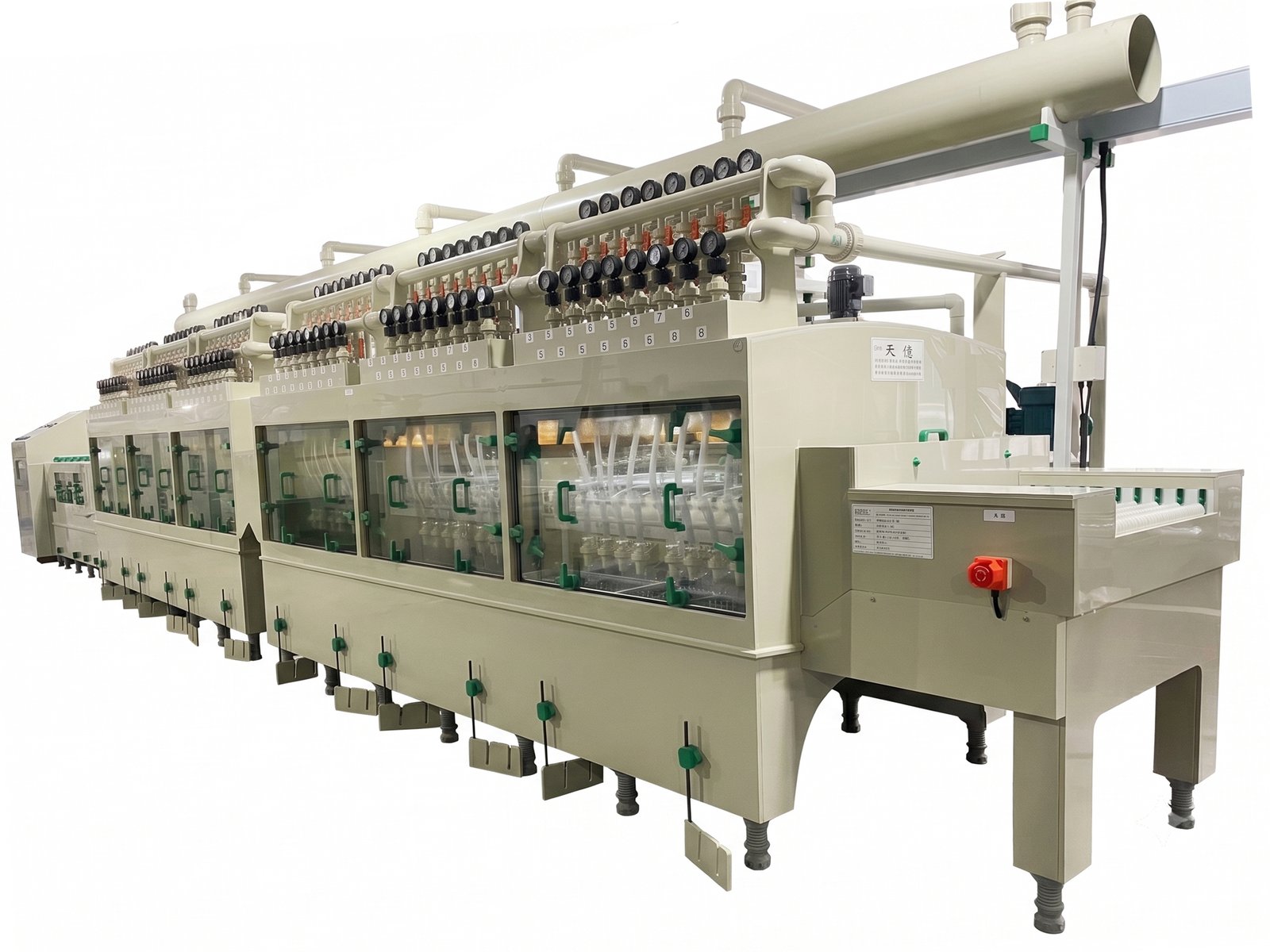

Stainless steel Etching machine for metal etching
Specifications:
- Etching machine process includes: Loading → Etching → Recycle washing (1/2) → DI water rinsing → Squeezing → Unloading.
- Dimension: L34,463xW2250xH2600MM
- Effective working width: 740mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 7.5HP 12SET double side Etching
- Total power consumption: 277.4KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Etching machine is waiting for you.

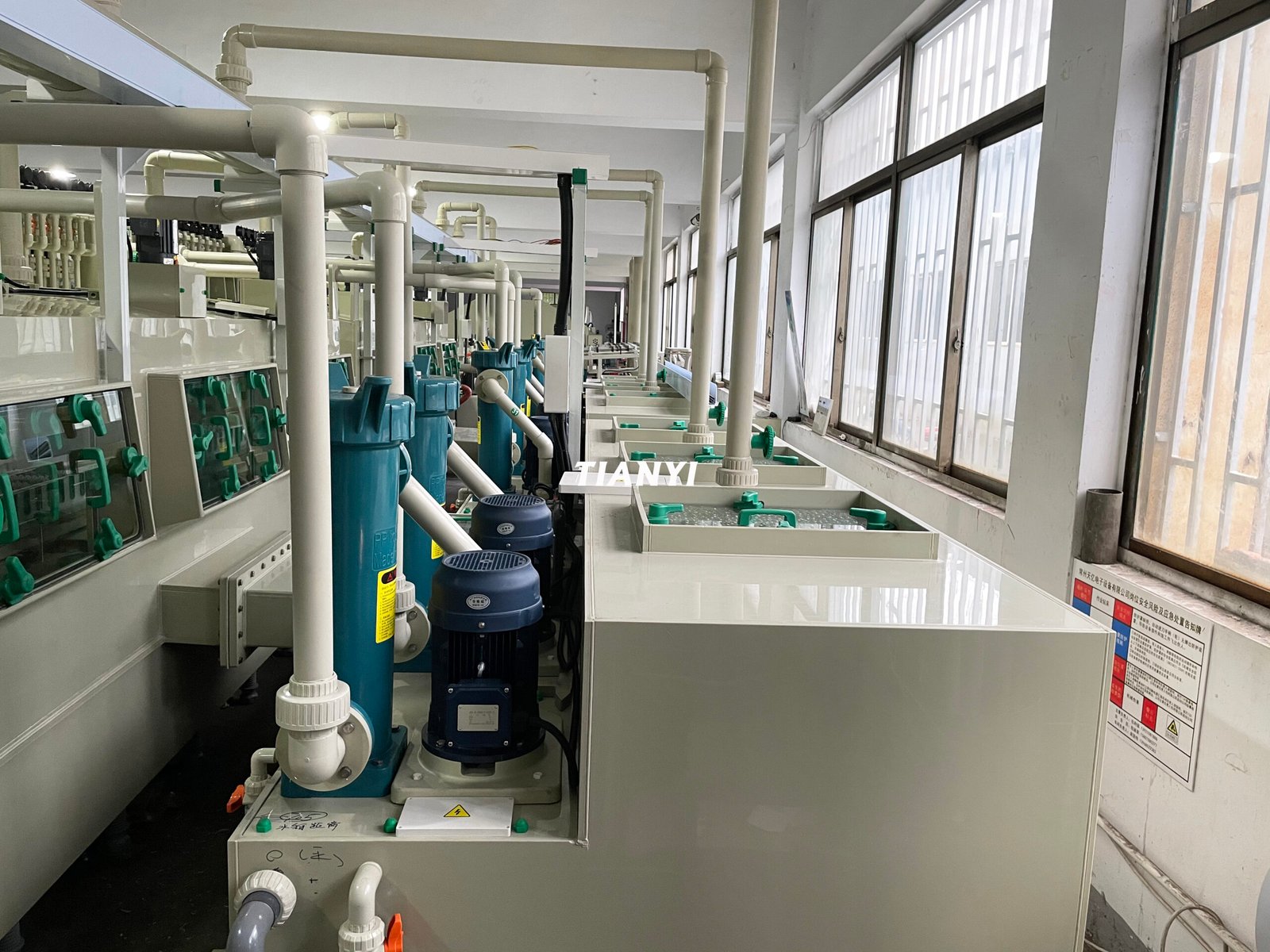

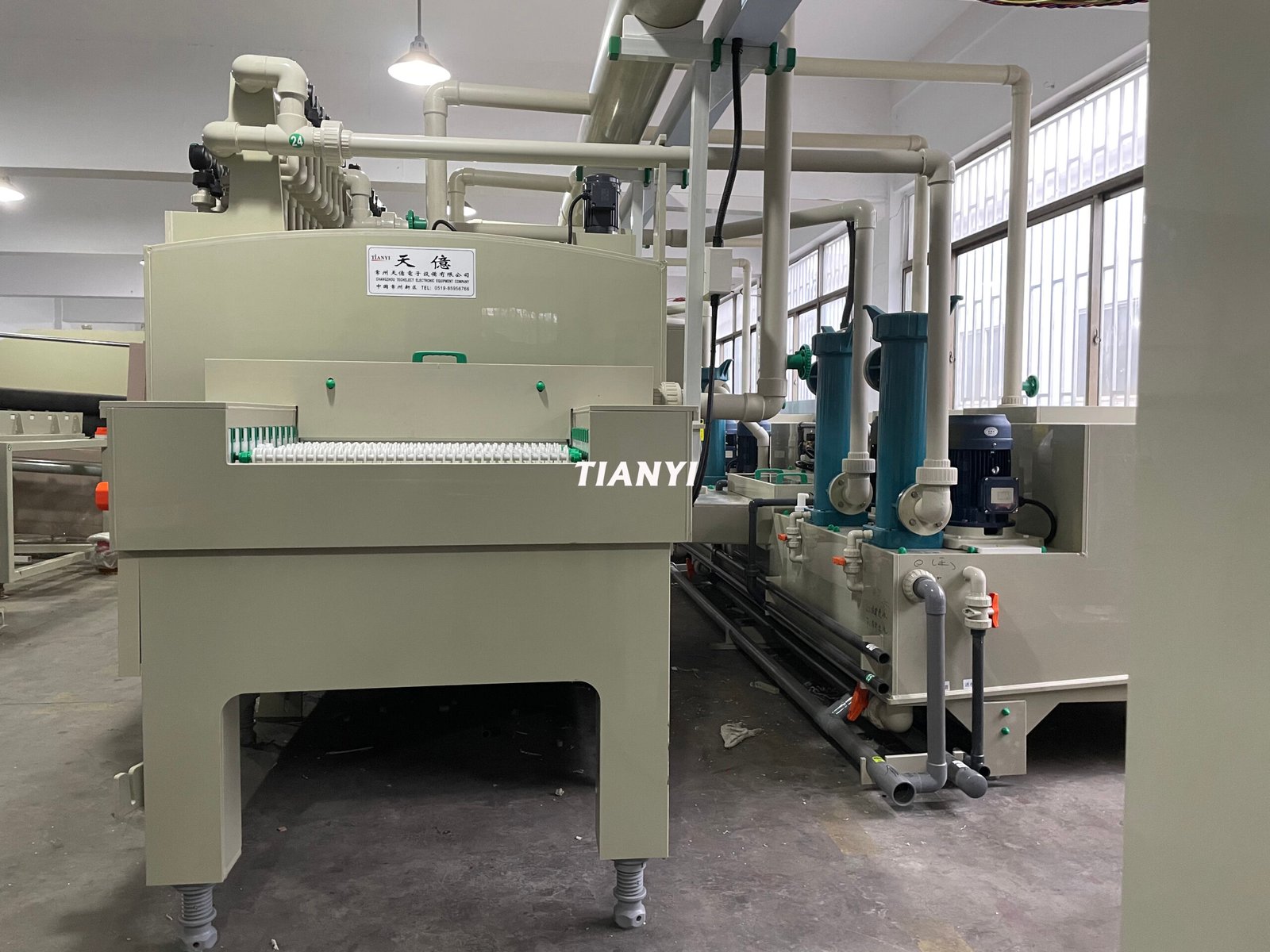

Effective etching spraying length is 6 meter, constructed with a corrosion-resistant body and advanced PP material, stainless steel etching machine assemble full pressure gauge for medium precise etching production.
Etching machine is equipped with acid regeneration system for better chemical concentration control, convenient in actual operation.
